Electric

Simple automation possibilities for ventilation operation

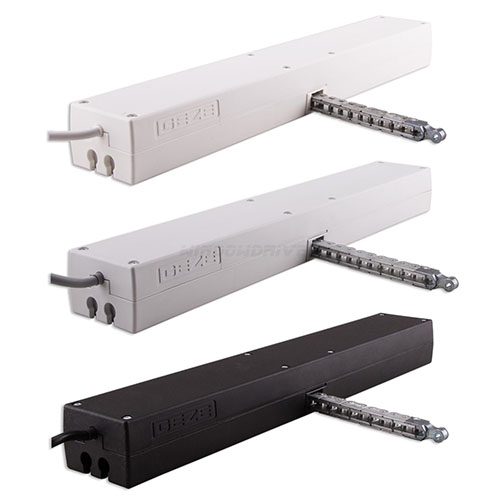

The chain drive GEZE ECchain is suitable for straight forward ventilation automation (230 V). As a low-price and powerful entry-level model, it is also suitable for private residential buildings.The ECchain can also be used as a variant on small fanlights, since a maximum opening angle is reached with very low casement heights.
The stroke length can be set to 200 mm or 400 mm. The integrated stroke setting option allows for adjustment in line with di! erent ventilation requirements. A range of colour variants allows the drive to be adapted to existing window pro” les. The ECchain can be installed quickly and easily.

Application range

• Straightforward automation for ventilation windows and the façade area
• For universal use, particularly in private residential buildings
• Bottom-hung, side-hung and top-hung casements
• Inward-opening and outward-opening casements
• Can be used on timber, plastic and aluminium pro” le systems
• Frame installation
